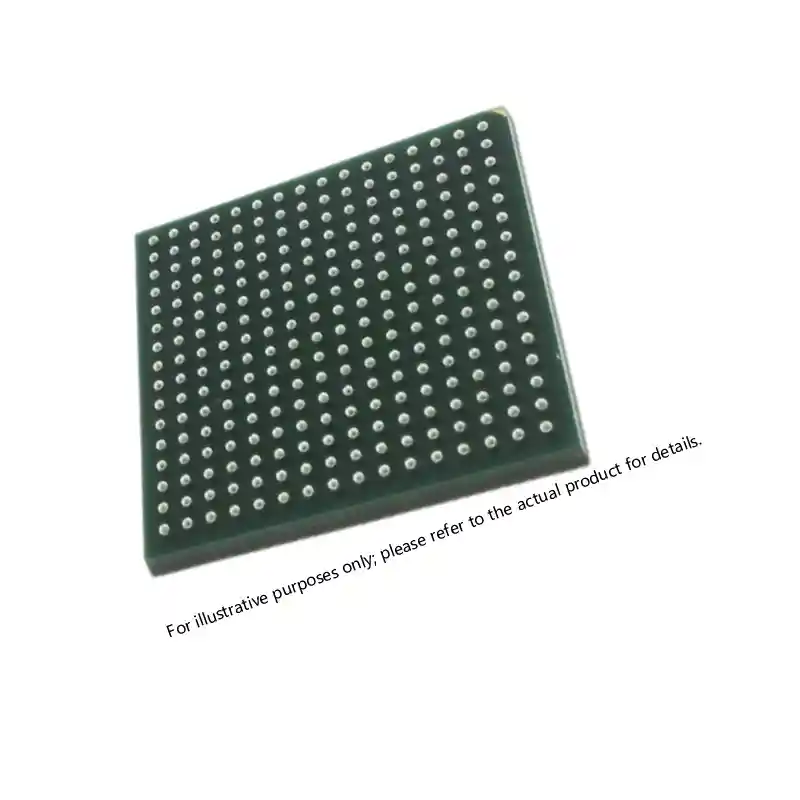

ACTEL A3P1000-FG256I
- ProASIC3 flash-based FPGA with 1,000,000 equivalent system gates
- 130nm flash process technology — non-volatile, instant-on, single-chip solution
- Operating frequency up to 100 MHz at standard speed grade
- 256-pin FBGA package with up to 177 user I/O pins
- 144 Kbits true dual-port on-chip SRAM
- Industrial-grade temperature range: –40°C to +85°C
The ACTEL A3P1000-FG256I is a ProASIC3 family flash-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 1,000,000 equivalent system gates on a 130nm CMOS flash process. The "FG256I" suffix identifies the 256-pin FBGA package and industrial temperature rating. Built on Actel's proven nonvolatile flash technology, the device is secure, low-power, and Instant-On — requiring no external configuration memory or boot device at power-up.
Unlike SRAM-based FPGAs, the ACTEL A3P1000-FG256I retains its configuration permanently after programming and is fully re-programmable in-system. It includes 144 Kbits of true dual-port SRAM, an integrated phase-locked loop (PLL) for clock conditioning, and 1 Kbit of on-chip nonvolatile FlashROM storage. With up to 177 user I/O pins in a compact 256-pin FBGA footprint, the ACTEL A3P1000-FG256I is ideal for designs requiring high gate density in a smaller package size.
Related Products For Your Business
What Is the ACTEL A3P1000-FG256I ProASIC3 FPGA?
We are a trusted supplier of the ACTEL A3P1000-FG256I ProASIC3 flash FPGA. We source the ACTEL A3P1000-FG256I with full traceability and rigorous quality inspection to meet the procurement demands of industrial, communications, and embedded system customers worldwide. The ACTEL A3P1000-FG256I delivers 1 million system gates in a secure, non-volatile, re-programmable flash architecture housed in a compact 256-pin FBGA package.
ACTEL A3P1000-FG256I Architecture: 1M Gates on 130nm Flash Process
The ACTEL A3P1000-FG256I is built on Actel’s third-generation ProASIC3 130nm flash CMOS process, offering 1,000,000 equivalent system gates operating at up to 100 MHz. Its nonvolatile flash technology means the ACTEL A3P1000-FG256I is Instant-On at power-up, requires no external boot device, and retains its configuration permanently without a battery. The device includes 144 Kbits of true dual-port on-chip SRAM, 1 Kbit of FlashROM, and an integrated PLL for flexible clock management.
ACTEL A3P1000-FG256I Package: 256-Pin FBGA for Compact High-Density Designs
The ACTEL A3P1000-FG256I is housed in a 256-pin FBGA package, supporting up to 177 user I/O pins in a smaller footprint compared to the 484-pin package variant. This makes the ACTEL A3P1000-FG256I an excellent choice for space-constrained PCB designs that still demand high gate density and on-chip memory resources. The device is fully compatible with Actel’s Libero IDE design tools for seamless FPGA logic development.
Why Choose the ACTEL A3P1000-FG256I for Industrial Applications?
The ACTEL A3P1000-FG256I is rated for industrial-grade operation from –40°C to +85°C, making it reliable across demanding thermal environments. Its flash-based re-programmable architecture offers the security of a fixed ASIC with the flexibility of an FPGA, at a competitive unit cost. The ACTEL A3P1000-FG256I is RoHS-compliant and lead-free, meeting modern environmental and manufacturing standards.
- The ACTEL A3P1000-FG256I offers 1,000,000 equivalent system gates on a 130nm flash CMOS process.
- It is Instant-On at power-up — no external configuration device required.
- On-chip resources include 144 Kbits of true dual-port SRAM and 1 Kbit of nonvolatile FlashROM.
- Its 256-pin FBGA package supports up to 177 user I/O pins in a compact footprint.
- The ACTEL A3P1000-FG256I is fully re-programmable in-system via flash-based technology.
- An integrated PLL provides flexible clock conditioning and management on-chip.
- Industrial temperature rating of –40°C to +85°C ensures reliable operation in harsh environments.
- RoHS-compliant and lead-free construction meets modern environmental standards.
- Full development support is available via Actel Libero IDE design tools.
- Urgent orders and long-term supply agreements for the ACTEL A3P1000-FG256I are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL A3P1000-FG256I and What Does It Do?
The ACTEL A3P1000-FG256I is a ProASIC3 family flash-based FPGA offering 1,000,000 equivalent system gates, up to 177 user I/O pins, and 144 Kbits of on-chip SRAM in a 256-pin FBGA package, rated for industrial temperature operation from –40°C to +85°C.
How Does the ACTEL A3P1000-FG256I Differ From the FGG484I Package Variant?
The ACTEL A3P1000-FG256I uses a smaller 256-pin FBGA package with up to 177 user I/O pins, compared to the 484-pin FBGA variant which offers up to 300 user I/Os. Both share the same 1M gate die and flash architecture, making the FG256I ideal for space-constrained designs with moderate I/O requirements.
Is the ACTEL A3P1000-FG256I Re-Programmable?
Yes. The ACTEL A3P1000-FG256I uses flash-based programming technology, which is both non-volatile and re-programmable. Unlike antifuse OTP devices, it can be reprogrammed multiple times in-system without removal from the board.
What Is the Operating Temperature Range of the ACTEL A3P1000-FG256I?
The ACTEL A3P1000-FG256I is rated for industrial-grade operation from –40°C to +85°C, suitable for a wide range of industrial, communications, and embedded computing environments.
How Do I Order the ACTEL A3P1000-FG256I?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL A3P1000-FG256I.
