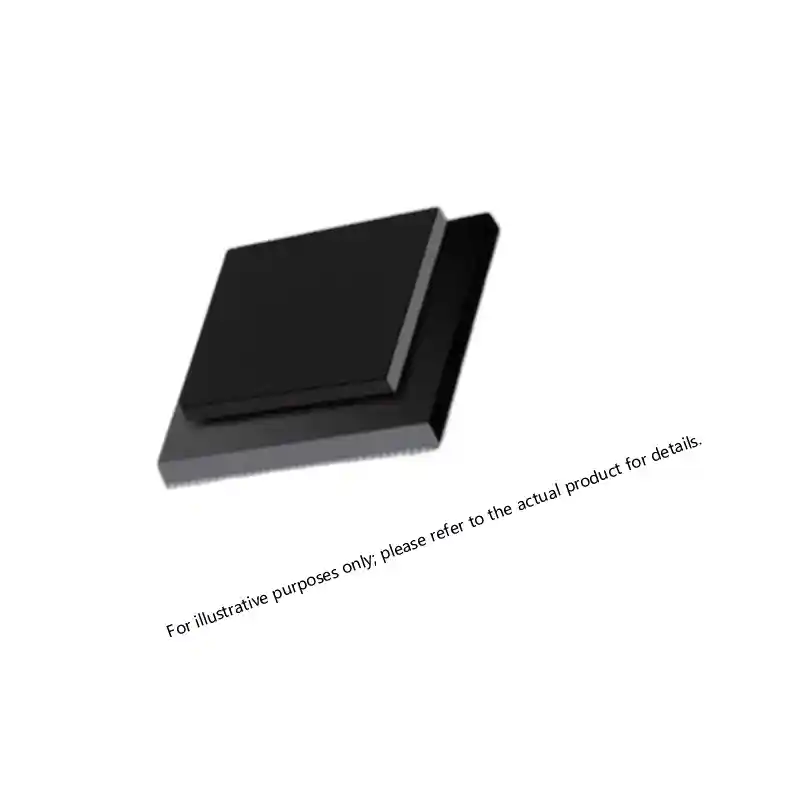

ACTEL A3PE3000-1FG484I
- ProASIC3E flash-based FPGA with 3,000,000 equivalent system gates
- 130nm flash process technology — non-volatile, instant-on, single-chip solution
- Operating frequency up to 272 MHz at speed grade -1
- 484-pin FBGA package with up to 341 user I/O pins
- 504 Kbits true dual-port on-chip SRAM with six integrated PLLs
- Industrial-grade temperature range: –40°C to +85°C
The ACTEL A3PE3000-1FG484I is a ProASIC3E family flash-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 3,000,000 equivalent system gates on a 130nm CMOS flash process. The "-1" speed grade designation guarantees operation at up to 272 MHz, while the "FG484I" suffix identifies the 484-pin FBGA package and industrial temperature rating. Built on Actel's proven nonvolatile flash technology, the device is secure, low-power, and Instant-On — requiring no external configuration memory or boot device at power-up.
Unlike SRAM-based FPGAs, the ACTEL A3PE3000-1FG484I retains its configuration permanently after programming and is fully re-programmable in-system. It includes 504 Kbits of true dual-port SRAM, six integrated phase-locked loops (PLLs) for advanced clock conditioning, and 1 Kbit of on-chip nonvolatile FlashROM storage. With up to 341 user I/O pins in a 484-pin FBGA package, the ACTEL A3PE3000-1FG484I is ideal for high-density, high-performance designs in industrial, communications, avionics, and defense applications.
Related Products For Your Business
We are a trusted supplier of the ACTEL A3PE3000-1FG484I ProASIC3E flash FPGA. We source the ACTEL A3PE3000-1FG484I with full traceability and rigorous quality inspection to meet the procurement demands of industrial, communications, and embedded system customers worldwide. The ACTEL A3PE3000-1FG484I delivers 3 million system gates at up to 272 MHz in a secure, non-volatile, re-programmable flash architecture.
ACTEL A3PE3000-1FG484I Architecture: 3M Gates on 130nm ProASIC3E Flash Process
The ACTEL A3PE3000-1FG484I is built on Actel’s third-generation ProASIC3E 130nm flash CMOS process, offering 3,000,000 equivalent system gates and 75,264 logic cells operating at up to 272 MHz at the -1 speed grade. Its nonvolatile flash technology means the ACTEL A3PE3000-1FG484I is Instant-On at power-up, requires no external boot device, and retains its configuration permanently without a battery. The device includes 504 Kbits of true dual-port on-chip SRAM, 1 Kbit of FlashROM, and six integrated PLLs for advanced clock conditioning and management.
ACTEL A3PE3000-1FG484I Package: 484-Pin FBGA with 341 User I/Os
The ACTEL A3PE3000-1FG484I is housed in a 484-pin FBGA package, supporting up to 341 user I/O pins for high-density system integration. Its compact surface-mount footprint enables efficient PCB layouts while providing the full I/O bandwidth needed for complex multi-interface designs. The ACTEL A3PE3000-1FG484I is fully compatible with Actel’s Libero IDE development tools and supports existing ASIC and FPGA design flows.
Why Choose the ACTEL A3PE3000-1FG484I for High-Performance Industrial Applications?
The ACTEL A3PE3000-1FG484I is rated for industrial-grade operation from –40°C to +85°C, ensuring reliable performance across demanding thermal environments. Its six integrated PLLs provide superior clock management capability for designs with complex clocking requirements. The ACTEL A3PE3000-1FG484I is RoHS-compliant and lead-free, meeting modern environmental and manufacturing standards while delivering ASIC-level unit cost with full FPGA flexibility.
- The ACTEL A3PE3000-1FG484I offers 3,000,000 equivalent system gates and 75,264 logic cells on 130nm ProASIC3E flash CMOS.
- It operates at up to 272 MHz at the -1 speed grade for high-performance logic applications.
- The ACTEL A3PE3000-1FG484I is Instant-On — no external configuration device required at power-up.
- On-chip resources include 504 Kbits of true dual-port SRAM and 1 Kbit of nonvolatile FlashROM.
- Six integrated PLLs provide advanced clock conditioning and frequency management on-chip.
- Its 484-pin FBGA package supports up to 341 user I/O pins for high-density system designs.
- The ACTEL A3PE3000-1FG484I is fully re-programmable in-system via flash-based technology.
- Industrial temperature rating of –40°C to +85°C ensures reliable operation in harsh environments.
- RoHS-compliant and lead-free construction meets modern environmental standards.
- Urgent orders and long-term supply agreements for the ACTEL A3PE3000-1FG484I are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL A3PE3000-1FG484I and What Does It Do?
The ACTEL A3PE3000-1FG484I is a ProASIC3E family flash-based FPGA offering 3,000,000 equivalent system gates operating at up to 272 MHz, with 504 Kbits of on-chip SRAM, six integrated PLLs, and up to 341 user I/O pins in a 484-pin FBGA package, rated for industrial temperature operation from –40°C to +85°C.
How Is the ACTEL A3PE3000-1FG484I Different From the A3PE1500 Series?
The ACTEL A3PE3000-1FG484I offers twice the gate density of the A3PE1500 series, with 3,000,000 equivalent system gates and 504 Kbits of on-chip SRAM compared to 1,500,000 gates and 324 Kbits on the A3PE1500. Both share the same ProASIC3E flash architecture and 484-pin FBGA package option.
Is the ACTEL A3PE3000-1FG484I Re-Programmable?
Yes. The ACTEL A3PE3000-1FG484I uses flash-based programming technology, which is both non-volatile and re-programmable. Unlike antifuse OTP devices, it can be reprogrammed multiple times in-system without removal from the board.
What Is the Operating Temperature Range of the ACTEL A3PE3000-1FG484I?
The ACTEL A3PE3000-1FG484I is rated for industrial-grade operation from –40°C to +85°C, suitable for a wide range of industrial, communications, and embedded computing environments.
How Do I Order the ACTEL A3PE3000-1FG484I?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL A3PE3000-1FG484I.
