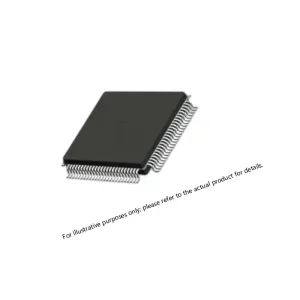

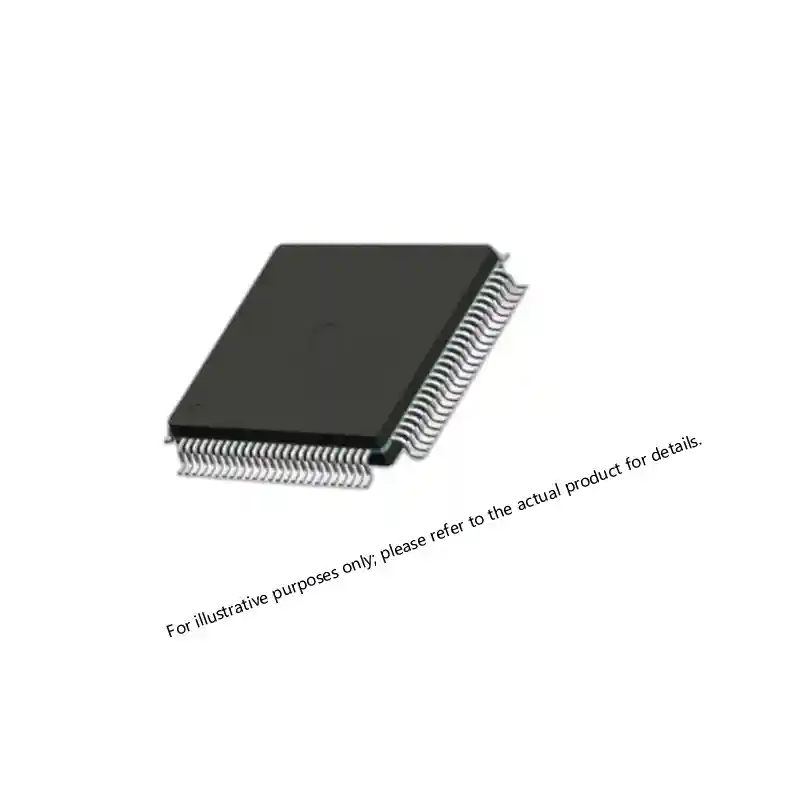

ACTEL A54SX72A-1CQ208B
- HiRel SX-A antifuse FPGA with 72,000 equivalent system gates and 4,024 logic cells
- 0.22µm / 0.25µm CMOS antifuse technology — one-time programmable, non-volatile
- Operating frequency up to 217 MHz at speed grade -1
- 208-pin ceramic QFP (CQFP) hermetic package for harsh environment reliability
- 2.5V core with 2.5V, 3.3V, and 5V mixed-voltage I/O support
- Military temperature range: –55°C to +125°C (B-grade)
The ACTEL A54SX72A-1CQ208B is a HiRel SX-A family antifuse-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 72,000 equivalent system gates and 4,024 logic cells on a 0.22µm / 0.25µm CMOS antifuse process. The "-1" speed grade guarantees operation at up to 217 MHz, while "CQ208B" identifies the 208-pin ceramic QFP hermetic package and military B-grade temperature rating of –55°C to +125°C. As a HiRel device, the A54SX72A-1CQ208B is specifically designed and qualified for mission-critical military, aerospace, and high-reliability applications.
Unlike reprogrammable FPGAs, the ACTEL A54SX72A-1CQ208B uses one-time programmable antifuse technology, making it inherently immune to configuration upset, reverse engineering, and unauthorized modification. It supports mixed-voltage I/O operation at 2.5V, 3.3V, and 5V — including 66 MHz PCI compliance — with hot-swap compliant I/Os and individual output slew rate control. Actel's FuseLock security technology permanently prevents internal probing and design theft, making the ACTEL A54SX72A-1CQ208B the trusted choice for classified and defense-grade logic designs.
Related Products For Your Business
The ACTEL A54SX72A-1CQ208B is a HiRel SX-A family antifuse FPGA from Actel (Microsemi / Microchip), offering 72,000 equivalent system gates at up to 217 MHz in a 208-pin ceramic QFP hermetic package, qualified for military B-grade operation from –55°C to +125°C. Built on 0.22µm / 0.25µm CMOS antifuse technology with FuseLock security, it is purpose-built for the most demanding defense, aerospace, and high-reliability applications.
ACTEL A54SX72A-1CQ208B Architecture: HiRel SX-A Antifuse Technology
The ACTEL A54SX72A-1CQ208B is built on Actel’s 0.22µm / 0.25µm CMOS antifuse process, delivering 72,000 equivalent system gates and 4,024 logic cells in a secure, one-time programmable architecture. Its antifuse interconnects are permanently programmed and cannot be erased, reconfigured, or read back — providing inherent protection against configuration upset and intellectual property theft. The ACTEL A54SX72A-1CQ208B features deterministic, user-controllable timing and up to 100% resource utilization, enabling highly optimized logic implementations for performance-critical designs.
ACTEL A54SX72A-1CQ208B Package: 208-Pin Ceramic CQFP for Military Environments
The ACTEL A54SX72A-1CQ208B is housed in a 208-pin ceramic quad flat pack (CQFP) hermetic package, providing maximum protection against moisture, vibration, thermal shock, and chemical exposure in military-grade operating environments. Its hermetic ceramic construction meets the stringent reliability requirements of MIL-spec and aerospace programs. The ACTEL A54SX72A-1CQ208B supports mixed-voltage I/O at 2.5V, 3.3V, and 5V, with 66 MHz PCI compliance and hot-swap compliant I/Os for flexible system integration.
Why Choose the ACTEL A54SX72A-1CQ208B for Defense and Aerospace Applications?
The ACTEL A54SX72A-1CQ208B is rated for military B-grade operation from –55°C to +125°C, making it reliable across the full temperature range encountered in airborne, shipboard, and ground-based military platforms. Actel’s FuseLock security technology permanently disables internal probing and prevents reverse engineering of the programmed design. With JTAG boundary scan (IEEE 1149.1) compliance and Silicon Explorer II in-system diagnostic capability, the ACTEL A54SX72A-1CQ208B offers comprehensive testability for high-reliability system verification. Contact us today to request a quote and check availability for the ACTEL A54SX72A-1CQ208B.
- The ACTEL A54SX72A-1CQ208B offers 72,000 equivalent system gates and 4,024 logic cells on 0.22µm / 0.25µm CMOS antifuse process.
- It operates at up to 217 MHz at speed grade -1 for high-performance military logic applications.
- One-time programmable antifuse architecture is immune to configuration upset and reverse engineering.
- FuseLock security technology permanently prevents internal probing and design theft.
- 208-pin ceramic CQFP hermetic package ensures reliable operation in harsh military environments.
- Mixed-voltage I/O support for 2.5V, 3.3V, and 5V with 66 MHz PCI compliance.
- Hot-swap compliant I/Os with individual output slew rate control for flexible system interfacing.
- JTAG boundary scan (IEEE 1149.1) compliance enables comprehensive in-system testing.
- Military B-grade temperature rating of –55°C to +125°C for full military environment operation.
- Urgent orders and long-term supply agreements for the ACTEL A54SX72A-1CQ208B are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL A54SX72A-1CQ208B and What Does It Do?
The ACTEL A54SX72A-1CQ208B is a HiRel SX-A family antifuse FPGA offering 72,000 equivalent system gates at up to 217 MHz, housed in a 208-pin ceramic CQFP hermetic package and rated for military B-grade operation from –55°C to +125°C, with FuseLock security and mixed-voltage I/O support.
How Is the ACTEL A54SX72A-1CQ208B Different From Standard Commercial FPGAs?
The ACTEL A54SX72A-1CQ208B is a HiRel (High Reliability) qualified device built on antifuse OTP technology, housed in a hermetic ceramic package, and rated for military temperature operation from –55°C to +125°C — far exceeding the qualification level of standard commercial or industrial grade FPGAs.
Is the ACTEL A54SX72A-1CQ208B Re-Programmable?
No. The ACTEL A54SX72A-1CQ208B uses one-time programmable antifuse technology. Once programmed, the device configuration is permanently fixed and cannot be erased or modified, providing maximum security and reliability for mission-critical defense applications.
What Security Features Does the ACTEL A54SX72A-1CQ208B Offer?
The ACTEL A54SX72A-1CQ208B features Actel’s FuseLock security technology, which permanently prevents internal probing and overwriting of the programmed design. This makes it suitable for classified and sensitive defense IP applications where design security is paramount.
How Do I Order the ACTEL A54SX72A-1CQ208B?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL A54SX72A-1CQ208B.
