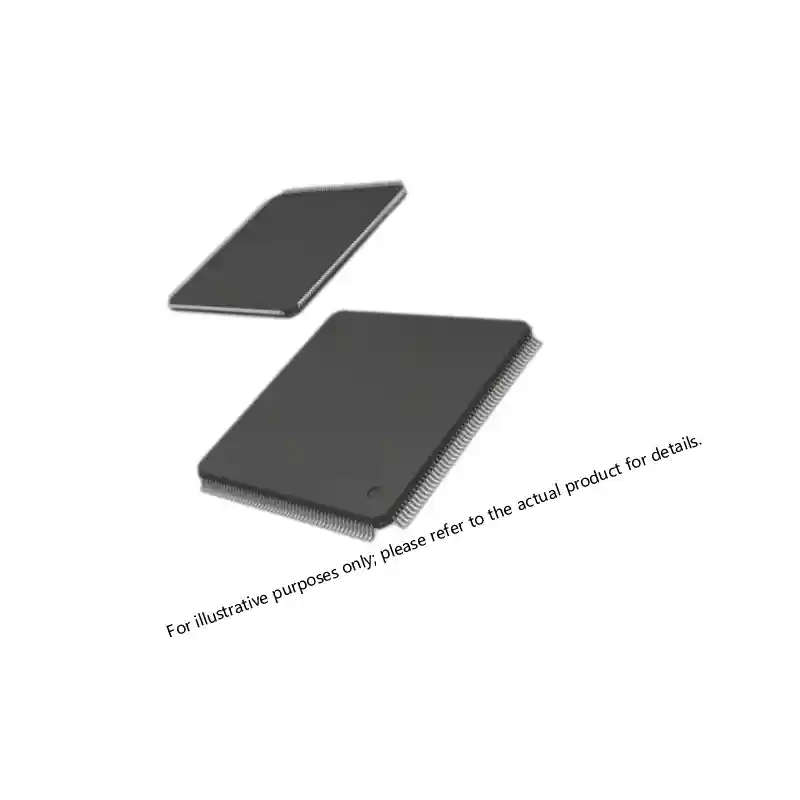

ACTEL APA300-CQ208B
- ProASICPLUS flash FPGA with 300,000 equivalent system gates
- 0.22µm 4-layer metal flash CMOS process — non-volatile, live at power-up
- Operating frequency up to 180 MHz with dual on-board PLLs
- 208-pin ceramic QFP (CQFP) hermetic package for military environments
- 72 Kbits two-port on-chip SRAM with 50 MHz PCI compliance
- MIL-STD-883 B-grade temperature range: –55°C to +125°C
The ACTEL APA300-CQ208B is a ProASICPLUS family flash-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 300,000 equivalent system gates on a 0.22µm 4-layer metal flash CMOS process. As part of Actel's second-generation flash FPGA family, the ProASICPLUS delivers enhanced performance over the original ProASIC series. The "CQ208B" suffix identifies the 208-pin ceramic QFP hermetic package and MIL-STD-883 B-grade military temperature rating of –55°C to +125°C, making it a qualified solution for defense and aerospace programs requiring moderate gate density in a military-grade package.
Unlike SRAM-based FPGAs, the ACTEL APA300-CQ208B is Live At Power-Up (LAPU), requiring no external boot PROM or configuration device. It includes 72 Kbits of two-port on-chip SRAM, dual integrated PLLs with flexible phase, multiply/divide, and delay capabilities, and up to 158 user I/O pins in the CQ208 package. With 50 MHz PCI compliance, JTAG boundary scan (IEEE 1149.1), in-system programmability via JTAG, and on-board security mechanisms to protect programmed designs, the ACTEL APA300-CQ208B delivers a secure and flexible platform for military embedded logic applications.
Related Products For Your Business
The ACTEL APA300-CQ208B is a ProASICPLUS family flash FPGA from Actel (Microsemi / Microchip), offering 300,000 equivalent system gates at up to 180 MHz in a 208-pin ceramic QFP hermetic package, qualified for MIL-STD-883 B-grade military operation from –55°C to +125°C. Built on a 0.22µm flash CMOS process with dual integrated PLLs and Live At Power-Up capability, it delivers a cost-effective, secure, and reliable solution for defense and aerospace embedded logic designs.
ACTEL APA300-CQ208B Architecture: 300K Gates on ProASICPLUS Flash Process
The ACTEL APA300-CQ208B is built on Actel’s second-generation ProASICPLUS 0.22µm 4-layer metal flash CMOS process, delivering 300,000 equivalent system gates operating at up to 180 MHz. Its nonvolatile flash technology means the ACTEL APA300-CQ208B is Live At Power-Up — no external boot PROM is required, and the programmed design is retained through power cycles without a battery. The device includes 72 Kbits of two-port on-chip SRAM and dual integrated PLLs with flexible phase, multiply/divide, and delay capabilities for advanced clock conditioning.
ACTEL APA300-CQ208B Package: 208-Pin Ceramic CQFP for Military Environments
The ACTEL APA300-CQ208B is housed in a 208-pin ceramic quad flat pack (CQFP) hermetic package, providing maximum protection against moisture, vibration, thermal shock, and chemical exposure in military-grade environments. Supporting up to 158 user I/O pins with 2.5V and 3.3V mixed-voltage operation, Schmitt-trigger inputs, and 50 MHz PCI compliance, the ACTEL APA300-CQ208B offers flexible and robust system interfacing. In-system programming via the JTAG port enables field upgrades without device removal.
Why Choose the ACTEL APA300-CQ208B for Military and Aerospace Applications?
The ACTEL APA300-CQ208B is qualified to MIL-STD-883 B-grade standards, ensuring operation from –55°C to +125°C across the full military temperature range. Its on-board security mechanisms protect the programmed design from unauthorized access and reverse engineering, while JTAG boundary scan (IEEE 1149.1) compliance enables comprehensive in-system testing. As an economical 300K gate option in the ProASICPLUS military family, the ACTEL APA300-CQ208B is the ideal choice for designs requiring moderate logic density with full military-grade qualification. Contact us today to request a quote and check availability for the ACTEL APA300-CQ208B.
- The ACTEL APA300-CQ208B offers 300,000 equivalent system gates on a 0.22µm ProASICPLUS flash CMOS process.
- It operates at up to 180 MHz with dual integrated PLLs for advanced clock conditioning.
- Live At Power-Up (LAPU) — no external boot PROM or configuration device required.
- On-chip resources include 72 Kbits of two-port SRAM for embedded data buffering and storage.
- 208-pin ceramic CQFP hermetic package ensures reliable operation in harsh military environments.
- In-system programmable via JTAG port for field upgrades without device removal.
- Mixed-voltage I/O support for 2.5V and 3.3V with 50 MHz PCI compliance.
- On-board security mechanisms protect programmed designs from unauthorized access.
- MIL-STD-883 B-grade temperature rating of –55°C to +125°C for full military environment operation.
- Urgent orders and long-term supply agreements for the ACTEL APA300-CQ208B are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL APA300-CQ208B and What Does It Do?
The ACTEL APA300-CQ208B is a ProASICPLUS family flash FPGA offering 300,000 equivalent system gates at up to 180 MHz, with 72 Kbits of on-chip SRAM, dual integrated PLLs, and up to 158 user I/O pins in a 208-pin ceramic CQFP hermetic package, qualified for MIL-STD-883 B-grade military operation from –55°C to +125°C.
How Is the ACTEL APA300-CQ208B Different From the APA1000-CQ208B?
The ACTEL APA300-CQ208B offers 300,000 equivalent system gates and 72 Kbits of on-chip SRAM, compared to 1,000,000 gates and 198 Kbits on the APA1000-CQ208B. Both share the same ProASICPLUS flash architecture, 208-pin ceramic CQFP package, and MIL-STD-883 B-grade military temperature rating, making the APA300 a cost-effective option for designs requiring moderate logic density.
Is the ACTEL APA300-CQ208B Re-Programmable?
Yes. The ACTEL APA300-CQ208B uses flash-based programming technology and supports in-system programming (ISP) via its JTAG port. The device can be reprogrammed multiple times to support design iterations and field upgrades while retaining full configuration security through its on-board security mechanisms.
What Is the Operating Temperature Range of the ACTEL APA300-CQ208B?
The ACTEL APA300-CQ208B is qualified to MIL-STD-883 B-grade standards for operation from –55°C to +125°C, suitable for airborne, shipboard, and ground-based military platform environments.
How Do I Order the ACTEL APA300-CQ208B?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL APA300-CQ208B.
