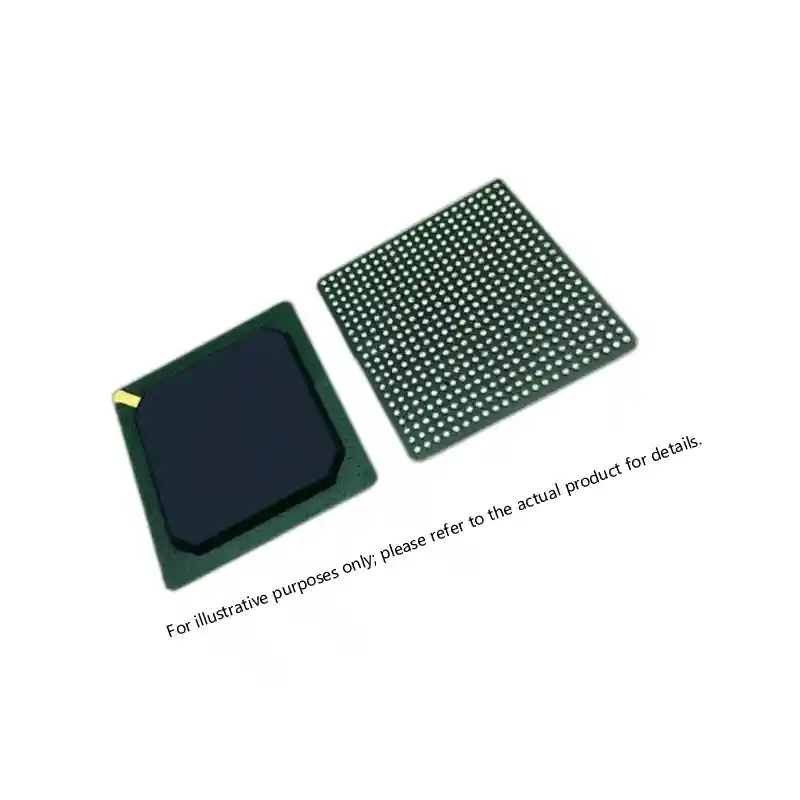

ACTEL M2S150-FCVG484I
- SmartFusion2 SoC FPGA with 146,124 logic cells and hardened ARM Cortex-M3 at 166 MHz
- 65nm low-power flash-based process technology at 1.2V core voltage
- 2 x PCIe Gen2 lanes, 2 x SERDES transceivers up to 3.125 Gbps
- 484-pin FBGA package with up to 300 user I/O pins
- 4 MB on-chip eNVM, 64 KB on-chip eSRAM, and DDR memory controller
- Industrial-grade temperature range: –40°C to +85°C
The ACTEL M2S150-FCVG484I is a SmartFusion2 family System-on-Chip (SoC) FPGA from Actel (Microsemi / Microchip), integrating the highest logic density in the SmartFusion2 family — 146,124 logic cells — with a hardened 166 MHz ARM Cortex-M3 processor, high-speed serial interfaces, and advanced security features on a single 65nm flash-based device. The "FCVG484I" suffix identifies the 484-pin FBGA package and industrial temperature rating of –40°C to +85°C. As Actel's most advanced SoC FPGA platform, the M2S150 combines programmable logic, embedded processing, and high-speed connectivity in a unified, secure, flash-based architecture.
Unlike SRAM-based SoC FPGAs, the ACTEL M2S150-FCVG484I is nonvolatile and secure by design — no external boot device is required, and the device's differential power analysis (DPA)-resistant security subsystem with 256-bit AES encryption protects both the programmable logic configuration and the embedded firmware. It supports two PCIe Gen2 lanes, dual SERDES transceivers at up to 3.125 Gbps, a DDR memory controller supporting DDR3/DDR2/LPDDR1, and a rich set of embedded peripherals including dual Gigabit Ethernet MACs, USB 2.0 OTG, CAN, SPI, I2C, and UART — making the ACTEL M2S150-FCVG484I a comprehensive single-chip platform for industrial, communications, and embedded computing applications.
Related Products For Your Business
For engineering teams and procurement specialists evaluating the ACTEL M2S150-FCVG484I, this SmartFusion2 SoC FPGA represents the flagship device in Microsemi’s most advanced flash-based SoC platform — combining 146,124 logic cells, a hardened 166 MHz ARM Cortex-M3 processor, PCIe Gen2, dual SERDES at 3.125 Gbps, and DPA-resistant 256-bit AES security in a single 484-pin FBGA package. Rated for industrial operation from –40°C to +85°C and built on a 65nm nonvolatile flash process, the M2S150-FCVG484I is a well-specified solution for secure, high-performance embedded system designs across industrial, communications, and defense-adjacent markets. We maintain verified M2S150-FCVG484I inventory with full traceability and certificate of conformance for both urgent and long-term procurement requirements.
M2S150-FCVG484I Architecture: SmartFusion2 SoC Integration at 65nm
The ACTEL M2S150-FCVG484I is built on Microsemi’s 65nm flash-based process, delivering 146,124 logic cells alongside a hardened ARM Cortex-M3 processor running at 166 MHz with tightly coupled 64 KB eSRAM and 4 MB eNVM for deterministic, secure firmware execution. Unlike SRAM-based SoC FPGAs that require an external boot device and are vulnerable to configuration attacks, the M2S150-FCVG484I is Instant-On with a nonvolatile configuration that cannot be read back or cloned. Its DPA-resistant security subsystem with 256-bit AES encryption, SHA-256 authentication, and unique device serial number provides a hardware root of trust for secure boot and IP protection across the entire device.
M2S150-FCVG484I Connectivity: PCIe Gen2, SERDES, and High-Speed Peripherals
The ACTEL M2S150-FCVG484I integrates two PCIe Gen2 lanes and dual SERDES transceivers operating at up to 3.125 Gbps, making it well suited for high-bandwidth communications and data acquisition system designs. Its embedded peripheral set includes dual Gigabit Ethernet MACs, USB 2.0 OTG, CAN, multiple SPI, I2C, and UART controllers — providing a comprehensive connectivity platform without external interface chips. The 484-pin FBGA package supports up to 300 user I/O pins with multi-standard voltage support, and a DDR memory controller with support for DDR3, DDR2, and LPDDR1 enables high-bandwidth external memory access for data-intensive applications.
Sourcing the ACTEL M2S150-FCVG484I: Industrial SoC FPGA Supply
The ACTEL M2S150-FCVG484I is an active-lifecycle device with strong demand across industrial automation, communications, and secure embedded computing programs worldwide. As a trusted supplier with global sourcing capability, we provide verified inventory, anti-counterfeit inspection, export-compliant shipping, and responsive technical support for every M2S150-FCVG484I order. Contact us today to confirm availability and request a competitive quote for the ACTEL M2S150-FCVG484I.
- The ACTEL M2S150-FCVG484I integrates 146,124 logic cells with a hardened 166 MHz ARM Cortex-M3 processor on a 65nm flash process.
- Built-in DPA-resistant 256-bit AES encryption and SHA-256 authentication for hardware-level security.
- 2 x PCIe Gen2 lanes and 2 x SERDES transceivers at up to 3.125 Gbps for high-speed connectivity.
- Dual Gigabit Ethernet MACs, USB 2.0 OTG, CAN, SPI, I2C, and UART embedded peripherals.
- 4 MB on-chip eNVM and 64 KB eSRAM for secure, deterministic firmware execution.
- DDR memory controller supporting DDR3, DDR2, and LPDDR1 for high-bandwidth external memory.
- Nonvolatile flash architecture — Instant-On with no external boot device required.
- 484-pin FBGA package with up to 300 user I/O pins for high-density system integration.
- Industrial temperature rating of –40°C to +85°C for reliable operation across demanding environments.
- Urgent orders and long-term supply agreements for the ACTEL M2S150-FCVG484I are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL M2S150-FCVG484I and What Does It Do?
The ACTEL M2S150-FCVG484I is a SmartFusion2 SoC FPGA integrating 146,124 logic cells, a hardened 166 MHz ARM Cortex-M3 processor, PCIe Gen2, dual SERDES at 3.125 Gbps, 256-bit AES security, and a rich peripheral set in a 484-pin FBGA package, rated for industrial operation from –40°C to +85°C.
How Is the ACTEL M2S150-FCVG484I Different From the SmartFusion A2F500 Series?
The ACTEL M2S150-FCVG484I belongs to the second-generation SmartFusion2 platform, offering significantly higher logic density (146,124 cells vs. 11,520 on the A2F500), a faster ARM Cortex-M3 at 166 MHz, PCIe Gen2, high-speed SERDES, DDR3 support, and advanced DPA-resistant security — making it the preferred upgrade path for designs requiring higher performance and connectivity.
Is the ACTEL M2S150-FCVG484I Secure Against Configuration Attacks?
Yes. The ACTEL M2S150-FCVG484I features a DPA-resistant security subsystem with 256-bit AES encryption, SHA-256 authentication, and a unique device serial number. Its nonvolatile flash architecture prevents configuration readback, and the secure boot capability ensures only authenticated firmware executes on the embedded ARM Cortex-M3 processor.
What Is the Operating Temperature Range of the ACTEL M2S150-FCVG484I?
The ACTEL M2S150-FCVG484I is rated for industrial-grade operation from –40°C to +85°C, suitable for a wide range of industrial automation, communications, and embedded computing environments.
How Do I Order the ACTEL M2S150-FCVG484I?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL M2S150-FCVG484I.
