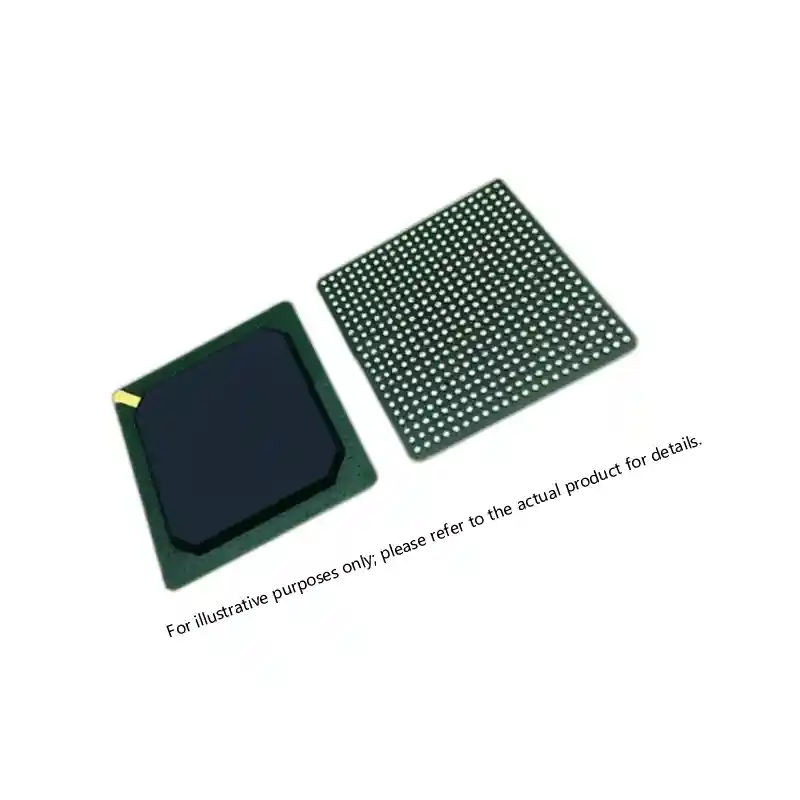

ACTEL MPF300T-FCSG536I

The ACTEL MPF300T-FCSG536I brings together 300,000 logic elements, 12.7 Gbps SERDES transceivers, and DPA-resistant 256-bit AES security in a 536-pin FCBGA package — all on Microsemi’s 28nm flash-based process that consumes up to 50% less power than equivalent SRAM FPGAs. For engineers evaluating the MPF300T-FCSG536I datasheet, the combination of nonvolatile flash architecture, SEU immunity, and high-speed transceiver integration makes it a technically differentiated choice across communications, defense, and industrial embedded applications rated for –40°C to +85°C industrial operation.

MPF300T-FCSG536I Architecture: 300K LEs on 28nm PolarFire Flash Process

The ACTEL MPF300T-FCSG536I is built on Microsemi’s 28nm flash-based process, delivering 300,000 logic elements alongside a high-performance DSP engine and up to 16 Mbits of embedded SRAM. Its nonvolatile flash architecture means the MPF300T-FCSG536I powers up instantly with no external configuration memory — a key advantage in systems where boot security and startup latency are critical design constraints. The device’s DPA-resistant security subsystem with 256-bit AES encryption and SHA-256 authentication provides a hardware root of trust for secure boot and bitstream protection, preventing cloning, tampering, and unauthorized design access across the full device lifecycle.

MPF300T-FCSG536I Transceivers and Connectivity: 12.7 Gbps SERDES in 536-Pin FCBGA

At the heart of the ACTEL MPF300T-FCSG536I’s connectivity capability are up to five 12.7 Gbps SERDES transceivers supporting PCIe Gen2, SGMII, JESD204B, and other high-speed serial protocols — enabling direct integration with modern communications, radar, and data acquisition interfaces without external PHY devices. The 536-pin FCBGA package provides up to 300 user I/O pins with multi-standard voltage support, and the external DDR memory controller supports DDR3, DDR4, and LPDDR3 for high-bandwidth data buffering. Engineers reviewing the MPF300T-FCSG536I pinout will find the FCSG536 footprint shared across multiple PolarFire density variants, simplifying design migration within the family.

MPF300T-FCSG536I vs Competing Mid-Range FPGAs: Power, Security, and Reliability

Where SRAM-based mid-range FPGAs require external configuration flash, consume higher static power, and are vulnerable to SEU-induced configuration upsets, the ACTEL MPF300T-FCSG536I addresses all three limitations in a single device. Its flash-based nonvolatile architecture eliminates the external boot chain, SEU immunity removes the need for configuration scrubbing in radiation-sensitive environments, and the integrated DPA-resistant security subsystem provides a level of hardware security that SRAM-based alternatives cannot match without additional external components. Supported by Microsemi’s Libero SoC PolarFire design suite, the MPF300T-FCSG536I integrates seamlessly into existing FPGA design flows. Contact us today to confirm availability and request a competitive quote for the ACTEL MPF300T-FCSG536I.

• The ACTEL MPF300T-FCSG536I delivers 300,000 logic elements on a 28nm flash-based nonvolatile process.
• Up to 50% lower power than equivalent SRAM FPGAs in both static and dynamic operation.
• Up to five 12.7 Gbps SERDES transceivers with PCIe Gen2, SGMII, and JESD204B support.
• DPA-resistant 256-bit AES encryption and SHA-256 authentication for hardware-level security.
• SEU immune flash architecture — no external configuration memory or scrubbing required.
• Up to 16 Mbits of embedded SRAM and DDR3/DDR4/LPDDR3 external memory controller support.
• 536-pin FCBGA package with up to 300 user I/O pins for high-density system integration.
• Instant-On at power-up — no external boot device required.
• Industrial temperature rating of –40°C to +85°C for reliable operation across demanding environments.
• Urgent orders and long-term supply agreements for the ACTEL MPF300T-FCSG536I are available upon request.

Frequently Asked Questions (FAQ)

What Is the ACTEL MPF300T-FCSG536I and What Does It Do?

The ACTEL MPF300T-FCSG536I is a PolarFire family mid-range FPGA delivering 300,000 logic elements on a 28nm flash-based process, with up to five 12.7 Gbps SERDES transceivers, 256-bit AES security, SEU immunity, and up to 300 user I/O pins in a 536-pin FCBGA package, rated for industrial operation from –40°C to +85°C.

How Does the ACTEL MPF300T-FCSG536I Compare to SRAM-Based Mid-Range FPGAs?

The ACTEL MPF300T-FCSG536I consumes up to 50% less power than equivalent SRAM-based FPGAs, requires no external configuration memory, and is inherently immune to SEU-induced configuration upsets. Its integrated DPA-resistant security subsystem provides hardware-level protection that SRAM-based alternatives cannot match without additional external components.

Is the ACTEL MPF300T-FCSG536I SEU Immune?

Yes. The flash-based nonvolatile architecture of the ACTEL MPF300T-FCSG536I is inherently immune to single-event upsets (SEU), making it suitable for defense, avionics, and radiation-sensitive environments where SRAM-based FPGAs require external configuration scrubbing to maintain reliable operation.

What High-Speed Interfaces Does the ACTEL MPF300T-FCSG536I Support?

The ACTEL MPF300T-FCSG536I integrates up to five SERDES transceivers operating at up to 12.7 Gbps, supporting PCIe Gen2, SGMII, JESD204B, and other high-speed serial protocols for direct integration with communications, radar, and data acquisition system interfaces.

How Do I Order the ACTEL MPF300T-FCSG536I?

You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL MPF300T-FCSG536I.
