ADI 5962-9684601QLA

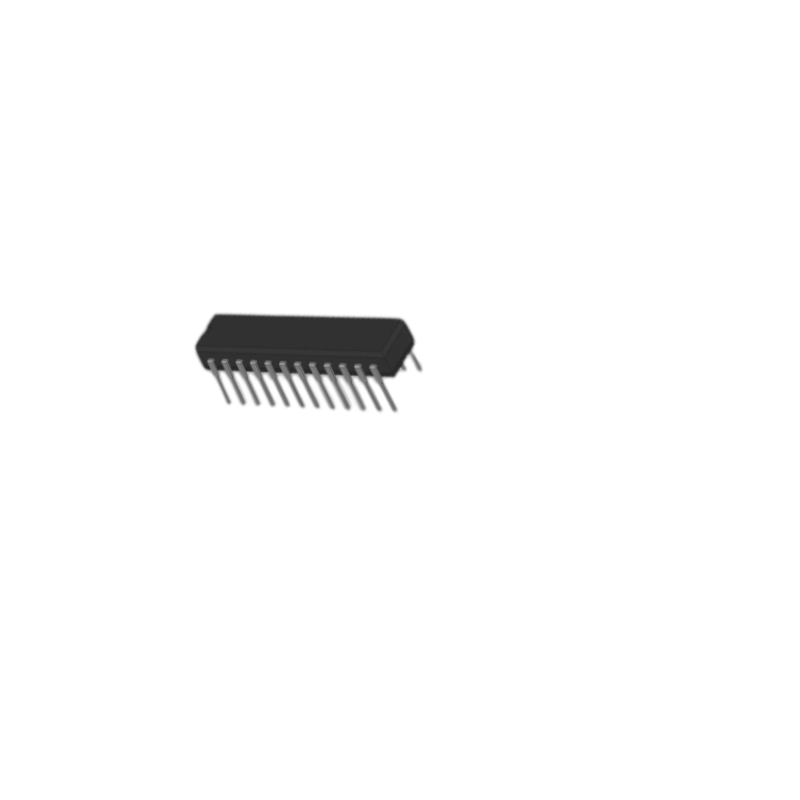

The AD660 was designed around a specific problem in multi-channel military analog output design: how to update several 16-bit DAC outputs simultaneously, from either a serial or parallel interface, with a single qualified component that includes its own precision reference. The ADI 5962-9684601QLA delivers that in a 24-lead ceramic DIP under MIL-STD-883B — a complete DACPORT that eliminates the external reference, output amplifier, and interface logic that discrete implementations require, while adding the interface flexibility that military system designers actually need across different processor architectures.

5962-9684601QLA Architecture: Dual-Mode Interface and Daisy-Chain Capability

The AD660’s interface architecture is the feature that separates it from single-mode alternatives. Serial mode accepts a continuous bitstream with pin-selectable MSB-first or LSB-first data direction, and the serial output pin passes data through to the next device in a chain — allowing multiple AD660s to be loaded from three control lines (SIN, CS, LDAC) regardless of how many devices are in the chain. Byte mode accepts 16-bit data as two sequential 8-bit transfers, compatible with both 8-bit and 16-bit processor buses. Both modes use the same double-buffered latch structure: data loads into the first-rank latch transparently, and the LDAC edge transfers all first-rank latches to the DAC registers simultaneously across every device in a multi-DAC system. The asynchronous CLR function resets all outputs to 0V regardless of the programmed output range mode — a useful fault response capability in military systems where a defined safe output state is required on command.

5962-9684601QLA vs Other Military 16-Bit DAC Options

The AD660 occupies a distinct position among military 16-bit DACs by combining the widest interface flexibility with the highest output voltage swing:

For multi-DAC military systems where all channels must update simultaneously from a serial interface with minimum control line count, the AD660 daisy-chain capability is a practical architectural advantage. For applications requiring the widest output range — particularly systems driving ±10V actuators or analog buses — the AD660’s bipolar swing matches the requirement directly.

Sourcing the ADI 5962-9684601QLA

The AD660 in its military ceramic package remains specified in long-lifecycle defense programs where its daisy-chain serial interface and ±10V output range address system requirements that alternatives do not cover as cleanly. We carry verified inventory with full lot traceability, MIL-STD-883B certificate of conformance, and anti-counterfeit inspection on every order. Contact us today to confirm availability and request a quote — our team responds within 24 hours.

• Daisy-chain serial output enables multi-DAC systems with minimum control line count — SIN, CS, LDAC only
• Asynchronous CLR resets all outputs to 0V regardless of programmed output range — defined fault response
• On-chip 10.000V buried Zener reference available for external use — eliminates separate reference component
• ±10V bipolar output range directly drives ±10V analog buses and actuators without level shifting
• Serial output shifts data through to next device — simplifies firmware for variable-length DAC chains
• Double-buffered latches eliminate inter-channel skew in simultaneous multi-DAC update applications
• Compatible interface with ADSP-210x, MC68HC11 SPI, MICROWIRE, and Z80 bus architectures
• Full lot traceability and MIL-STD-883B certificate of conformance on every order
