ACTEL A3PE1500-1FGG676I
- ProASIC3E flash-based FPGA with 1,500,000 equivalent system gates
- 130nm flash process technology — non-volatile, instant-on, single-chip solution
- Operating frequency up to 231 MHz at speed grade -1

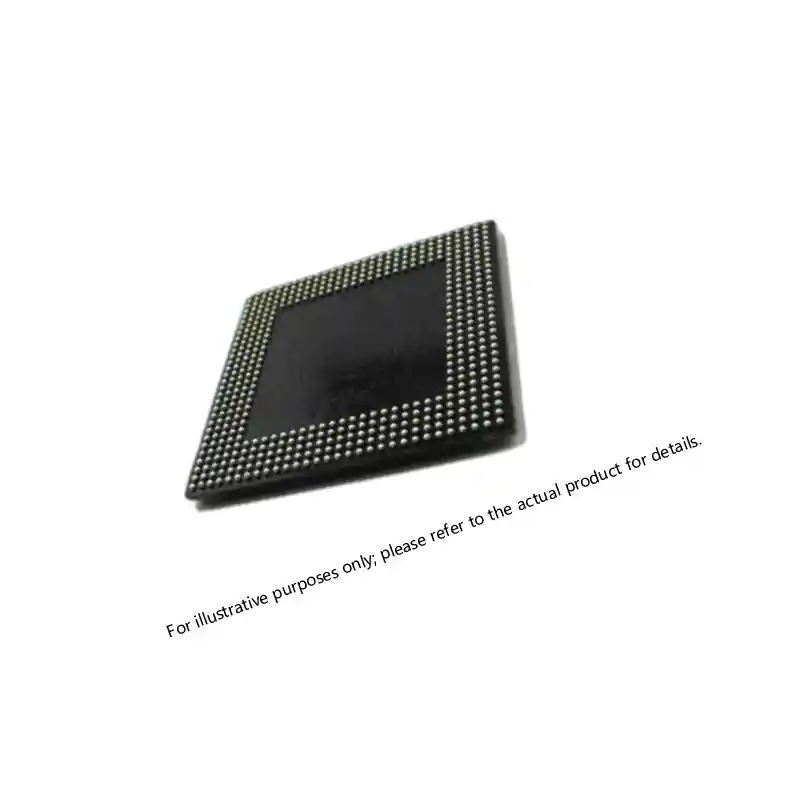

- 676-pin FBGA package with up to 388 user I/O pins
- 324 Kbits true dual-port on-chip SRAM with six integrated PLLs
- Industrial-grade temperature range: –40°C to +85°C
The ACTEL A3PE1500-1FGG676I is a ProASIC3E family flash-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 1,500,000 equivalent system gates on a 130nm 7-layer metal flash CMOS process. The "-1" speed grade designation guarantees operation at up to 231 MHz, while the "FGG676I" suffix identifies the 676-pin FBGA package and industrial temperature rating. Built on Actel's proven nonvolatile flash technology, the device is secure, low-power, and Instant-On — requiring no external configuration memory or boot device at power-up.
Unlike SRAM-based FPGAs, the ACTEL A3PE1500-1FGG676I retains its configuration permanently after programming and is fully re-programmable in-system. It includes 324 Kbits of true dual-port SRAM, six integrated phase-locked loops (PLLs) for advanced clock conditioning, and 1 Kbit of on-chip nonvolatile FlashROM storage. With up to 388 user I/O pins in a 676-pin FBGA package, the ACTEL A3PE1500-1FGG676I is ideal for high-density, high-performance designs in industrial, communications, avionics, and defense applications.
Related Products For Your Business
What Is the ACTEL A3PE1500-1FGG676I ProASIC3E FPGA?
We are a trusted supplier of the ACTEL A3PE1500-1FGG676I ProASIC3E flash FPGA. We source the ACTEL A3PE1500-1FGG676I with full traceability and rigorous quality inspection to meet the procurement demands of industrial, communications, and embedded system customers worldwide. The ACTEL A3PE1500-1FGG676I delivers 1.5 million system gates at up to 231 MHz in a secure, non-volatile, re-programmable flash architecture.
ACTEL A3PE1500-1FGG676I Architecture: 1.5M Gates on 130nm ProASIC3E Flash Process
The ACTEL A3PE1500-1FGG676I is built on Actel’s third-generation ProASIC3E 130nm 7-layer metal flash CMOS process, offering 1,500,000 equivalent system gates operating at up to 231 MHz at the -1 speed grade. Its nonvolatile flash technology means the ACTEL A3PE1500-1FGG676I is Instant-On at power-up, requires no external boot device, and retains its configuration permanently without a battery. The device includes 324 Kbits of true dual-port on-chip SRAM, 1 Kbit of FlashROM, and six integrated PLLs for advanced clock conditioning and management.
ACTEL A3PE1500-1FGG676I Package: 676-Pin FBGA with 388 User I/Os
The ACTEL A3PE1500-1FGG676I is housed in a 676-pin FBGA package, supporting up to 388 user I/O pins for maximum system integration flexibility. Its high I/O count makes the ACTEL A3PE1500-1FGG676I well suited for complex multi-interface designs requiring extensive peripheral connectivity. The device is fully compatible with Actel’s Libero IDE development tools and supports existing ASIC and FPGA design flows.
Why Choose the ACTEL A3PE1500-1FGG676I for High-Performance Industrial Applications?
The ACTEL A3PE1500-1FGG676I is rated for industrial-grade operation from –40°C to +85°C, ensuring reliable performance across demanding thermal environments. Its six integrated PLLs provide superior clock management capability compared to single-PLL devices, making the ACTEL A3PE1500-1FGG676I ideal for designs with complex clocking requirements. RoHS-compliant and lead-free, it meets modern environmental and manufacturing standards.
- The ACTEL A3PE1500-1FGG676I offers 1,500,000 equivalent system gates on a 130nm ProASIC3E flash CMOS process.
- It operates at up to 231 MHz at the -1 speed grade for high-performance logic applications.
- The ACTEL A3PE1500-1FGG676I is Instant-On — no external configuration device required at power-up.
- On-chip resources include 324 Kbits of true dual-port SRAM and 1 Kbit of nonvolatile FlashROM.
- Six integrated PLLs provide advanced clock conditioning and frequency management on-chip.
- Its 676-pin FBGA package supports up to 388 user I/O pins for high-density system designs.
- The ACTEL A3PE1500-1FGG676I is fully re-programmable in-system via flash-based technology.
- Industrial temperature rating of –40°C to +85°C ensures reliable operation in harsh environments.
- RoHS-compliant and lead-free construction meets modern environmental standards.
- Urgent orders and long-term supply agreements for the ACTEL A3PE1500-1FGG676I are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL A3PE1500-1FGG676I and What Does It Do?
The ACTEL A3PE1500-1FGG676I is a ProASIC3E family flash-based FPGA offering 1,500,000 equivalent system gates operating at up to 231 MHz, with 324 Kbits of on-chip SRAM, six integrated PLLs, and up to 388 user I/O pins in a 676-pin FBGA package, rated for industrial temperature operation from –40°C to +85°C.
How Is the ACTEL A3PE1500-1FGG676I Different From the ProASIC3 A3P Series?
The ACTEL A3PE1500-1FGG676I belongs to the ProASIC3E (Enhanced) family, which offers higher gate density, more on-chip SRAM, additional PLLs, and higher maximum operating frequencies compared to the standard ProASIC3 A3P series, making it better suited for demanding high-performance applications.
Is the ACTEL A3PE1500-1FGG676I Re-Programmable?
Yes. The ACTEL A3PE1500-1FGG676I uses flash-based programming technology, which is both non-volatile and re-programmable. Unlike antifuse OTP devices, it can be reprogrammed multiple times in-system without removal from the board.
What Is the Operating Temperature Range of the ACTEL A3PE1500-1FGG676I?
The ACTEL A3PE1500-1FGG676I is rated for industrial-grade operation from –40°C to +85°C, suitable for a wide range of industrial, communications, and embedded computing environments.
How Do I Order the ACTEL A3PE1500-1FGG676I?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL A3PE1500-1FGG676I.
