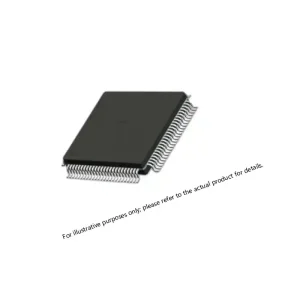

ACTEL AX2000-CQ256M
- Axcelerator antifuse FPGA with 2,000,000 equivalent system gates and 21,504 logic cells
- 0.15µm 7-layer metal CMOS antifuse process — one-time programmable, SEU immune
- 350+ MHz system performance, 500+ MHz internal performance at standard speed grade
- 256-pin ceramic QFP (CQFP) hermetic package for military environments
- 295 Kbits embedded SRAM with integrated FIFO control logic and dual PLLs
- Military M-grade temperature range: –55°C to +125°C
The ACTEL AX2000-CQ256M is an Axcelerator family antifuse-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), delivering 2,000,000 equivalent system gates on Actel's advanced 0.15µm 7-layer metal CMOS antifuse process. The "CQ256M" suffix identifies the 256-pin ceramic CQFP hermetic package and military M-grade temperature rating of –55°C to +125°C. As the highest gate density device in the Axcelerator family at standard speed grade, the AX2000-CQ256M offers maximum logic capacity in a compact hermetic package for military and aerospace programs where board space is constrained.
Unlike SRAM-based FPGAs, the ACTEL AX2000-CQ256M is nonvolatile and Live At Power-Up — no external configuration memory or boot device is required, and the device is inherently immune to single-event upsets (SEU) and firm errors. It features 295 Kbits of embedded SRAM with integrated FIFO control logic, dual PLLs, segmentable clock networks, chip-wide highway routing for predictable high-speed timing, and FuseLock security technology to permanently prevent design readback and IP theft. Multi-standard I/O support including LVDS at 700 Mb/s, HSTL, SSTL, GTL+, and PCI/PCI-X provides the interface flexibility required for demanding military system integration.
Related Products For Your Business
The ACTEL AX2000-CQ256M brings the full 2-million-gate density of Actel’s Axcelerator family into a compact 256-pin ceramic CQFP hermetic package, qualified for military M-grade operation from –55°C to +125°C. Built on a 0.15µm 7-layer metal antifuse process with 500+ MHz internal performance, SEU immunity, and FuseLock security, it is a well-established choice for defense and aerospace programs requiring maximum logic density in a smaller hermetic footprint.
AX2000-CQ256M Architecture: Maximum Gate Density in the Axcelerator Family
The ACTEL AX2000-CQ256M delivers 2,000,000 equivalent system gates across 21,504 SuperCluster logic cells, supported by 295 Kbits of embedded SRAM with integrated FIFO control logic and dual on-chip PLLs. Its chip-wide highway routing provides deterministic timing closure across the full military temperature and voltage range — a critical advantage in complex signal processing and communications designs where timing margin cannot be compromised. The antifuse architecture permanently fixes all interconnects after programming, making the AX2000-CQ256M inherently immune to SEU-induced configuration upsets that affect SRAM-based alternatives in radiation environments.
AX2000-CQ256M Package and I/O: 256-Pin CQFP for Space-Constrained Military Designs
Housed in a 256-pin ceramic CQFP hermetic package, the ACTEL AX2000-CQ256M offers the highest gate density available in the Axcelerator CQ256 footprint — making it the preferred migration target for engineers maximizing logic utilization within an existing board layout. Its multi-standard I/O architecture supports LVDS at 700 Mb/s, HSTL, SSTL2/3, GTL+, and PCI/PCI-X with bank-selectable mixed-voltage operation at 1.5V, 1.8V, 2.5V, and 3.3V. FuseLock security technology permanently disables design readback and reverse engineering after programming, meeting the IP protection requirements of classified and sensitive defense programs.
Sourcing the ACTEL AX2000-CQ256M: Verified Military FPGA Supply
As a trusted supplier of legacy military FPGAs, we maintain verified AX2000-CQ256M inventory supported by full component traceability, certificate of conformance, and anti-counterfeit inspection. The AX2000-CQ256M remains in active demand across long-lifecycle defense and avionics programs, and our team is experienced in supporting both urgent single-unit procurement and sustained production volume agreements. Contact us today to check availability and request a competitive quote for the ACTEL AX2000-CQ256M.
- The ACTEL AX2000-CQ256M delivers 2,000,000 equivalent system gates on a 0.15µm 7-layer metal antifuse process.
- 21,504 SuperCluster logic cells with 500+ MHz internal and 350+ MHz system performance at standard speed grade.
- One-time programmable antifuse architecture is SEU immune and inherently secure against configuration upset.
- FuseLock technology permanently prevents design readback, cloning, and reverse engineering.
- 295 Kbits of embedded SRAM with integrated FIFO control logic and dual on-chip PLLs.
- Chip-wide highway routing ensures deterministic, predictable timing closure for complex designs.
- Multi-standard I/O support including LVDS at 700 Mb/s, HSTL, SSTL, GTL+, and PCI/PCI-X.
- 256-pin ceramic CQFP hermetic package rated for military M-grade operation at –55°C to +125°C.
- Live At Power-Up — no external boot device or configuration memory required.
- Urgent orders and long-term supply agreements for the ACTEL AX2000-CQ256M are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL AX2000-CQ256M and What Does It Do?
The ACTEL AX2000-CQ256M is an Axcelerator family antifuse FPGA delivering 2,000,000 equivalent system gates at 500+ MHz internal performance, with 295 Kbits of embedded SRAM, dual PLLs, FuseLock security, and multi-standard I/O in a 256-pin ceramic CQFP hermetic package, rated for military M-grade operation from –55°C to +125°C.
How Does the ACTEL AX2000-CQ256M Differ From the AX1000-CQ352M?
The ACTEL AX2000-CQ256M offers twice the gate density of the AX1000-CQ352M — 2,000,000 versus 612,000 equivalent system gates — with 295 Kbits of embedded SRAM compared to 165 Kbits on the AX1000. The AX2000-CQ256M is housed in a smaller 256-pin CQFP package, making it the preferred choice for designs requiring maximum gate density within a compact hermetic footprint.
Is the ACTEL AX2000-CQ256M SEU Immune?
Yes. The antifuse architecture of the ACTEL AX2000-CQ256M is inherently immune to single-event upsets (SEU) and firm errors caused by high-energy particle strikes, making it a trusted choice for space, avionics, and radiation-exposed military environments where SRAM-based FPGAs are vulnerable to configuration corruption.
What Is the Operating Temperature Range of the ACTEL AX2000-CQ256M?
The ACTEL AX2000-CQ256M is rated for military M-grade operation from –55°C to +125°C, suitable for the full range of airborne, shipboard, and ground-based military platform environments.
How Do I Order the ACTEL AX2000-CQ256M?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL AX2000-CQ256M.
