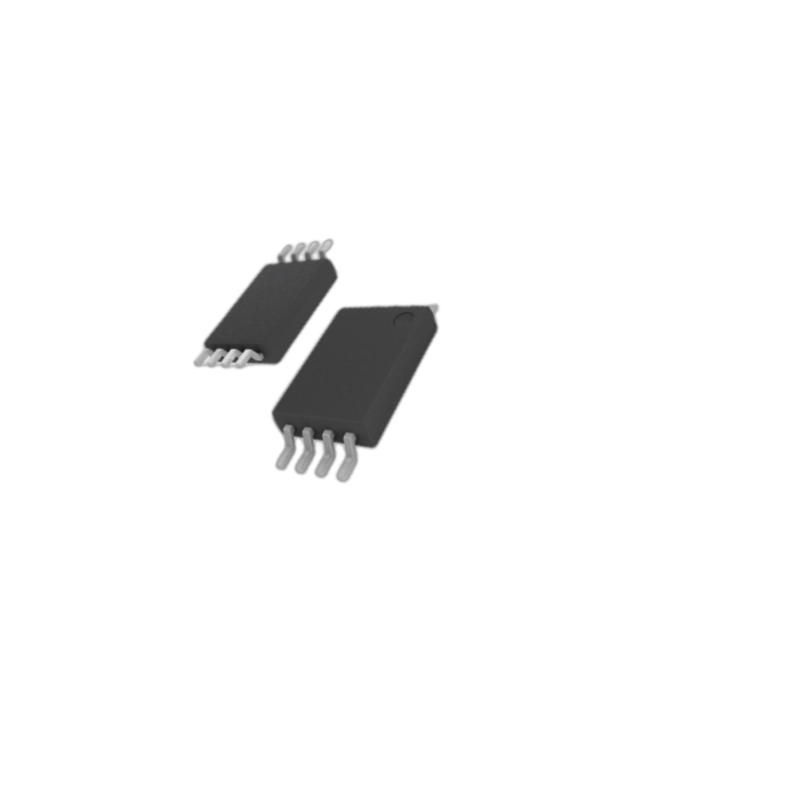

ADI AD8606ARMZ

For aerospace and defense procurement teams sourcing the AD8606ARMZ, three specifications define its position in the precision op amp catalog: 80 µV maximum input offset voltage, 0.2 pA input bias current, and –40°C to +125°C extended temperature coverage. In avionics signal chains where sensor outputs are amplified before digitization, the offset and bias current specifications set the DC accuracy floor for the entire channel. The 0.2 pA bias current is particularly significant for high-impedance sources, where even small bias currents create voltage errors at the input that add directly to the offset budget. The AD8606ARMZ covers these requirements in a dual-channel 8-lead MSOP that fits on high-density defense electronics PCBs without the board area overhead of larger packages.

AD8606ARMZ Architecture: DigiTrim Precision and Rail-to-Rail Operation

The DigiTrim technique that sets the AD8606’s offset voltage operates digitally during wafer-level test, adjusting internal current sources to minimize offset without the long-term drift mechanisms that laser trimming can introduce. The result is a device that arrives at 80 µV maximum offset without requiring user trimming, and maintains that precision through the extended –40°C to +125°C temperature range. Rail-to-rail input and output together maximize the usable signal range on low-voltage single-supply designs, which matters increasingly in modern defense electronics where 3.3V and 5V system rails replace the dual 15V supplies of legacy military analog designs. The 90 dB CMRR and 95 dB PSRR provide effective rejection of the supply noise and common-mode interference that couple into signal paths in dense military electronics assemblies.

AD8606ARMZ vs AD860x Family: Channel Count and Package Selection

The AD860x family spans single, dual, and quad configurations across multiple package options:

For aerospace and defense designs requiring more than two precision channels, the AD8608ARUZ quad variant provides four identical channels in a 14-lead TSSOP with the same noise, offset, and temperature specifications. For single-channel applications where minimum package size is the priority, the AD8605 in SOT-23 shares the same die. For designs requiring the military temperature range and hermetic packaging with MIL-STD-883B qualification, the 5962-8872101PA OP270Z dual precision op amp provides a qualified alternative for programs with strict military screening requirements.

Sourcing the ADI AD8606ARMZ

The AD8606ARMZ is an active-production standard product with broad distribution availability across aerospace, defense-adjacent, and industrial programs. We carry verified inventory with full lot traceability and anti-counterfeit inspection on every order. Contact us today to confirm availability and request a quote, and our team responds within 24 hours.

• DigiTrim achieves 80 µV maximum offset without laser trimming, avoiding long-term drift from laser damage
• 0.2 pA typical bias current makes the AD8606 suitable for megaohm source impedances without significant error
• Rail-to-rail input and output maximizes signal swing on 3.3V and 5V single-supply defense electronics
• Unity-gain stable with 10 MHz GBW, compatible with a wide range of closed-loop filter and amplifier configurations
• 80 mA output current per channel drives capacitive and resistive loads directly in sensor interface designs
• AD8606ARMZ-REEL (3000 unit) and AD8606ARMZ-R7 (1500 unit) reel variants available for production volume
• Pin-compatible with AD8606ARZ SOIC variant for layout migration between package sizes
• Full lot traceability and anti-counterfeit inspection on every order

Frequently Asked Questions (FAQ)

What Is the ADI AD8606ARMZ and How Does It Differ From the AD8605 and AD8608?

The AD8606ARMZ is the dual-channel, 8-lead MSOP, tape-and-reel variant of the AD8606 precision CMOS rail-to-rail op amp, rated for –40°C to +125°C. The AD8605 is the single-channel version in a 5-lead SOT-23 package, and the AD8608 is the quad-channel version in a 14-lead TSSOP. All three share the same die characteristics and specifications, differing only in channel count and package format.

What Is DigiTrim and Why Does It Matter for Precision Applications?

DigiTrim is Analog Devices’ proprietary digital trimming technique that adjusts internal current sources during wafer-level test to minimize input offset voltage. Unlike laser trimming, which physically ablates resistors and can introduce long-term drift from stress relaxation, DigiTrim makes no physical changes to the silicon. The result is a 80 µV maximum offset voltage with improved long-term stability, which benefits precision aerospace and defense signal chains where offset drift over equipment lifetime affects measurement accuracy.

Is the AD8606ARMZ Suitable for Replacing Military-Grade Op Amps in Defense Designs?

The AD8606ARMZ covers –40°C to +125°C and delivers precision CMOS performance suitable for many defense-adjacent applications. For programs requiring hermetic ceramic packaging, MIL-STD-883B screening, and –55°C to +125°C temperature range, the 5962-8872101PA OP270Z is a qualified military alternative. The AD8606ARMZ is appropriate for programs where extended industrial temperature coverage and EAR99 classification are sufficient without full military qualification.

What Is the Input Bias Current Significance for High-Impedance Sensor Interfaces?

The 0.2 pA typical input bias current of the AD8606 creates a voltage error at the input equal to IB multiplied by the source impedance. At 1 MΩ source impedance, this error is only 0.2 µV, far below the 80 µV maximum offset voltage. For photodiode, electrochemical, and other high-impedance defense sensor interfaces where source impedances can reach gigaohms, the femtoampere-level bias current keeps the bias-induced error negligible compared to other error sources.
