ACTEL A3PE3000L-1FGG896I
- ProASIC3EL low-power flash FPGA with 3,000,000 equivalent system gates
- 40% lower dynamic power and 50% lower static power vs. standard ProASIC3E
- 130nm flash process technology — non-volatile, instant-on, single-chip solution
- Operating frequency up to 272 MHz at speed grade -1
- 896-pin FBGA package with up to 620 user I/O pins
- Industrial-grade temperature range: –40°C to +85°C
The ACTEL A3PE3000L-1FGG896I is a ProASIC3EL family low-power flash-based Field Programmable Gate Array (FPGA) from Actel (Microsemi / Microchip), offering 3,000,000 equivalent system gates on a 130nm CMOS flash process. The "L" designation identifies this device as the low-power variant of the ProASIC3E family, delivering 40% lower dynamic power consumption and 50% lower static power compared to the standard A3PE3000. The "-1" speed grade guarantees operation at up to 272 MHz, while "FGG896I" identifies the 896-pin FBGA package and industrial temperature rating.
Unlike SRAM-based FPGAs, the ACTEL A3PE3000L-1FGG896I retains its configuration permanently after programming and is fully re-programmable in-system. It includes 504 Kbits of true dual-port SRAM, six integrated PLLs for advanced clock conditioning, and 1 Kbit of nonvolatile FlashROM storage. With up to 620 user I/O pins in a 896-pin FBGA package, the ACTEL A3PE3000L-1FGG896I is the ideal choice for power-sensitive, high-I/O designs in industrial, communications, avionics, and defense applications.
Related Products For Your Business
The ACTEL A3PE3000L-1FGG896I is a ProASIC3EL family low-power flash FPGA from Actel (Microsemi / Microchip), offering 3,000,000 equivalent system gates at up to 272 MHz with 40% lower dynamic power and 50% lower static power than the standard ProASIC3E. Housed in a 896-pin FBGA package with up to 620 user I/O pins, it is built for power-sensitive, high-density industrial and embedded system designs.
ACTEL A3PE3000L-1FGG896I Architecture: 3M Gates with Low-Power Flash Process
The ACTEL A3PE3000L-1FGG896I is built on Actel’s ProASIC3EL 130nm flash CMOS process at a 1.2V core voltage, offering 3,000,000 equivalent system gates and 75,264 logic cells operating at up to 272 MHz at the -1 speed grade. Its nonvolatile flash technology means the ACTEL A3PE3000L-1FGG896I is Instant-On at power-up, requires no external boot device, and retains its configuration permanently without a battery. The device includes 504 Kbits of true dual-port on-chip SRAM, 1 Kbit of FlashROM, and six integrated PLLs for advanced clock conditioning and management.

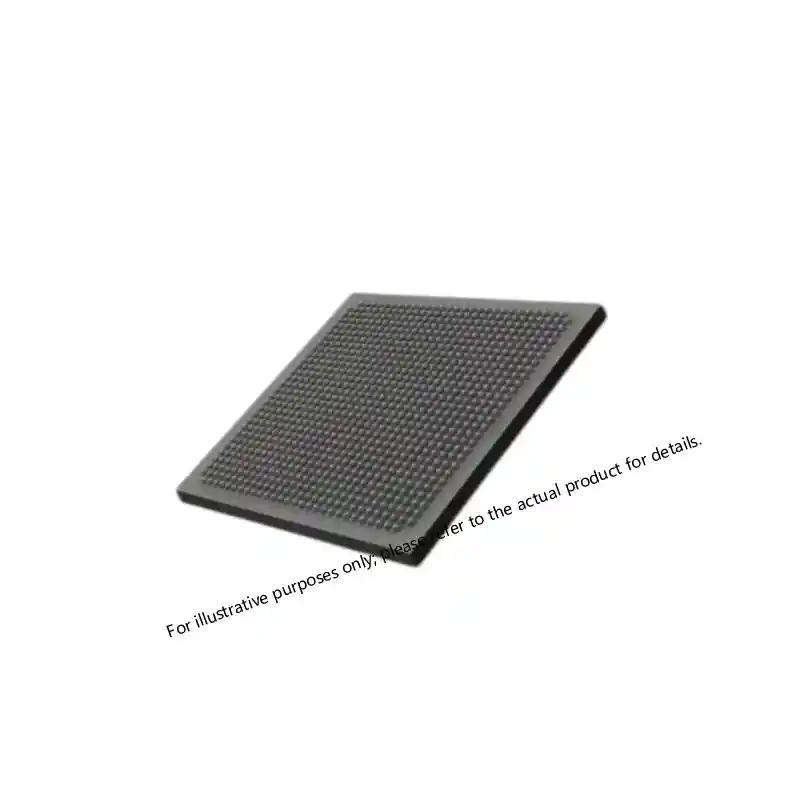

ACTEL A3PE3000L-1FGG896I Package: 896-Pin FBGA with 620 User I/Os
The ACTEL A3PE3000L-1FGG896I is housed in a 896-pin FBGA package, supporting up to 620 user I/O pins — the highest I/O count available in the ProASIC3EL family. This makes the ACTEL A3PE3000L-1FGG896I exceptionally well suited for complex multi-interface system designs that demand both high I/O density and low power operation. The device is fully compatible with Actel’s Libero IDE development tools and supports existing ASIC and FPGA design flows.
Why Choose the ACTEL A3PE3000L-1FGG896I for Low-Power Industrial Applications?
The ACTEL A3PE3000L-1FGG896I is rated for industrial-grade operation from –40°C to +85°C, ensuring reliable performance across demanding thermal environments. Its combination of maximum gate density, highest I/O count, low-power flash architecture, and six integrated PLLs makes the ACTEL A3PE3000L-1FGG896I the top-tier choice in the ProASIC3EL family for power-sensitive, high-performance applications. Contact us today to request a quote and check availability for the ACTEL A3PE3000L-1FGG896I.
- The ACTEL A3PE3000L-1FGG896I offers 3,000,000 equivalent system gates on a 130nm ProASIC3EL flash CMOS process.
- It delivers 40% lower dynamic power and 50% lower static power than the standard ProASIC3E family.
- Operating at up to 272 MHz at the -1 speed grade for high-performance logic applications.
- The ACTEL A3PE3000L-1FGG896I is Instant-On — no external configuration device required at power-up.
- On-chip resources include 504 Kbits of true dual-port SRAM and 1 Kbit of nonvolatile FlashROM.
- Six integrated PLLs provide advanced clock conditioning and frequency management on-chip.
- Its 896-pin FBGA package supports up to 620 user I/O pins for maximum system integration.
- The ACTEL A3PE3000L-1FGG896I operates at 1.2V core voltage for reduced power consumption.
- Industrial temperature rating of –40°C to +85°C ensures reliable operation in harsh environments.
- Urgent orders and long-term supply agreements for the ACTEL A3PE3000L-1FGG896I are available upon request.
Frequently Asked Questions (FAQ)
What Is the ACTEL A3PE3000L-1FGG896I and What Does It Do?
The ACTEL A3PE3000L-1FGG896I is a ProASIC3EL low-power flash FPGA offering 3,000,000 equivalent system gates at up to 272 MHz, with 504 Kbits of on-chip SRAM, six integrated PLLs, and up to 620 user I/O pins in a 896-pin FBGA package, rated for industrial temperature operation from –40°C to +85°C.
How Is the ACTEL A3PE3000L-1FGG896I Different From the Standard A3PE3000?
The ACTEL A3PE3000L-1FGG896I belongs to the ProASIC3EL (Low-Power) family, delivering 40% lower dynamic power and 50% lower static power compared to the standard A3PE3000. It also operates at a lower 1.2V core voltage versus the 1.5V of the standard variant, making it ideal for power-sensitive applications.
Is the ACTEL A3PE3000L-1FGG896I Re-Programmable?
Yes. The ACTEL A3PE3000L-1FGG896I uses flash-based programming technology, which is both non-volatile and re-programmable. Unlike antifuse OTP devices, it can be reprogrammed multiple times in-system without removal from the board.
What Is the Operating Temperature Range of the ACTEL A3PE3000L-1FGG896I?
The ACTEL A3PE3000L-1FGG896I is rated for industrial-grade operation from –40°C to +85°C, suitable for a wide range of industrial, communications, and embedded computing environments.
How Do I Order the ACTEL A3PE3000L-1FGG896I?
You can submit an inquiry directly through our website contact form or email our sales team. We will respond with pricing, lead time, and availability within 24 hours for the ACTEL A3PE3000L-1FGG896I.
