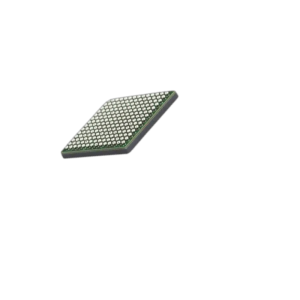

ADI AD9684BBPZ-500
- 14-bit resolution with 500 MSPS sampling rate
- Dual-channel differential analog inputs
- 2 GHz full-power bandwidth for wide signal capture
- Multi-range analog input voltage support
- Integrated digital downconverters (DDC)
High-speed analog-to-digital conversion forms the backbone of modern communication systems, where capturing wideband signals with precision directly impacts system performance. The AD9684BBPZ-500 addresses this need by delivering 14-bit resolution at 500 million samples per second, making it suitable for demanding applications that require both speed and accuracy.
Its dual-channel architecture allows simultaneous sampling of multiple signal streams, a critical capability for diversity receivers and multi-band communication systems. The integrated digital downconverters reduce the burden on downstream processing, enabling more efficient signal conditioning directly at the conversion stage.
Related Products For Your Business
The AD9684BBPZ-500 is a dual-channel, 14-bit, 500 MSPS analog-to-digital converter designed to meet the demanding signal capture needs of modern communication and radar systems. It balances high sampling speed with reliable performance, making it a versatile solution for applications where both bandwidth and precision matter.
Technical Performance Overview
This ADC combines a multi-stage pipeline architecture with integrated input buffers to deliver 2 GHz full-power bandwidth, allowing it to capture wideband signals without significant attenuation. The device supports multiple analog input ranges, giving system designers flexibility to optimize for different signal amplitudes and dynamic range requirements.
Product Comparison Considerations
When evaluating high-speed ADCs, it’s important to balance sampling rate, resolution, and power consumption. For applications requiring military-grade ruggedization, consider ADI’s hermetically sealed solutions like 5962-9078501MLA which offer enhanced environmental tolerance.
| Parameter | AD9684BBPZ-500 | 5962-9078501MLA |
|---|---|---|
| Resolution | 14-bit | 12-bit |
| Sampling Rate | 500 MSPS | 125 MSPS |
| Operating Temperature | -40°C to +85°C | -55°C to +125°C |
| Package Type | BGA-196 | Hermetic Ceramic |
Supply Chain and Quality Assurance
We maintain extensive inventory of industrial-grade ADI components, with full traceability from original manufacturers. Our quality control processes include electrical testing and visual inspection to ensure each component meets datasheet specifications.
- Integrated input buffers eliminate the need for external signal conditioning
- LVDS output interface provides high noise immunity for data transmission
- On-chip reference voltage source reduces external component count
- Flexible power supply options support low-power operation modes
- Built-in self-test capabilities simplify system validation
- RoHS-compliant packaging supports environmental sustainability
- Application-specific reference designs accelerate time to market
- Comprehensive technical documentation and design support available
For engineers seeking a high-performance ADC for communication or radar applications, the AD9684BBPZ-500 offers an optimal balance of speed, resolution, and integration. Contact our technical support team today to discuss your specific design requirements.
FAQ
What is the difference between the AD9684BBPZ-500 and military-grade ADCs?
The AD9684BBPZ-500 is an industrial-grade component rated for -40°C to +85°C operation. Military-grade alternatives like 5962-9451801MLA offer extended temperature ranges (-55°C to +125°C) and hermetic packaging for enhanced ruggedization in extreme environments.
Can the AD9684BBPZ-500 be used in satellite communication systems?
Yes, its 2 GHz bandwidth and high sampling rate make it suitable for satellite ground station receivers. For space-qualified applications, consider radiation-hardened alternatives that meet MIL-STD-883 specifications.
What support is available for designing with the AD9684BBPZ-500?
We provide comprehensive design resources including reference schematics, SPICE models, and application notes. Our technical support team is available to assist with layout optimization and performance tuning for your specific application.
